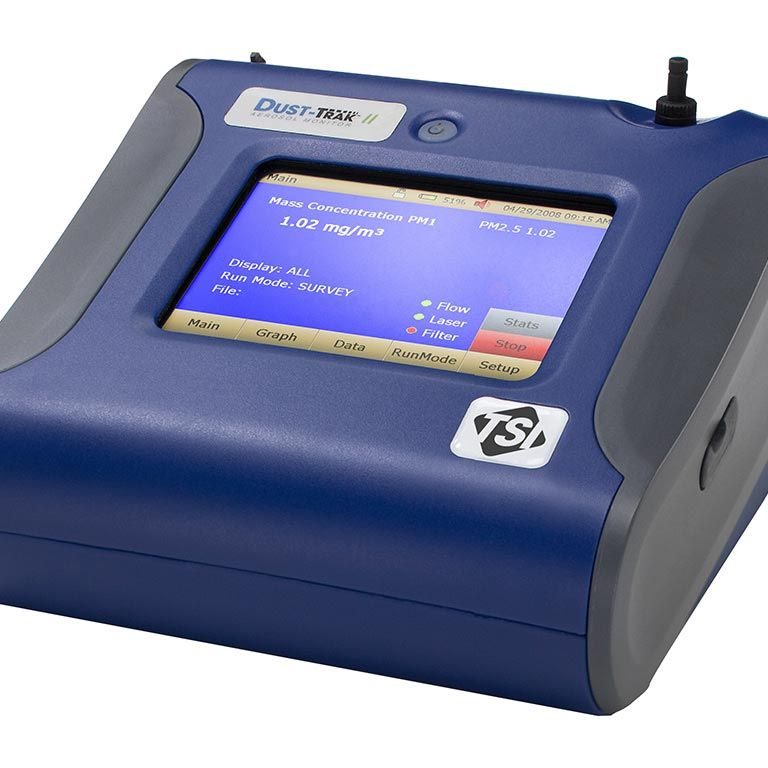

TSI DustTrak II 8530 / 8532 – aerosol and dust monitors
Applications
Real-time measurement of dust, smoke, fumes and mists – for industrial and occupational hygiene surveys, indoor air quality investigations, outdoor environmental monitoring, engineering control evaluations, process and emissions monitoring and aerosol research. Suitable for clean offices as well as harsh industrial, construction and outdoor sites.
Key features
- Mass concentration corresponding to PM1, PM2.5, respirable or PM10 size fractions
- Sheath air system keeps the optics clean for low maintenance
- Manual and programmable data logging, TrakPro data analysis software
- 8530: STEL alarm setpoint, gravimetric sampling for custom calibration, automatic zeroing (with optional module)
- Impactor kit (PM1, PM2.5, PM4, PM10) and 10-mm Dorr-Oliver cyclone included
- 2-year warranty
Models
| Parameter | DustTrak II 8530 | DustTrak II 8532 |
|---|---|---|
| Type | desktop, with battery and AC adapter | handheld, lightweight |
| Concentration range | 0.001–400 mg/m³ | 0.001–150 mg/m³ |
| Channels | single | single |
| Gravimetric sample | yes (37-mm cassette) | – |
| Battery | Li-Ion 9220 mAh | Li-Ion 4400 mAh |
| Additional | touchscreen, analog/alarm outputs, optional environmental enclosure | single point data logging |
Included
Carrying case, rechargeable battery, power supply, zero filter, USB cable, impactor kit, cyclone, sample tube, HEPA filters, calibration certificate, operation manual.
What we offer
- Selection of the instrument and configuration for your task
- Advice on accessories and software
- Calibration and service organised through the manufacturer
Technical data according to the manufacturer: tsi.com, tsi.com
