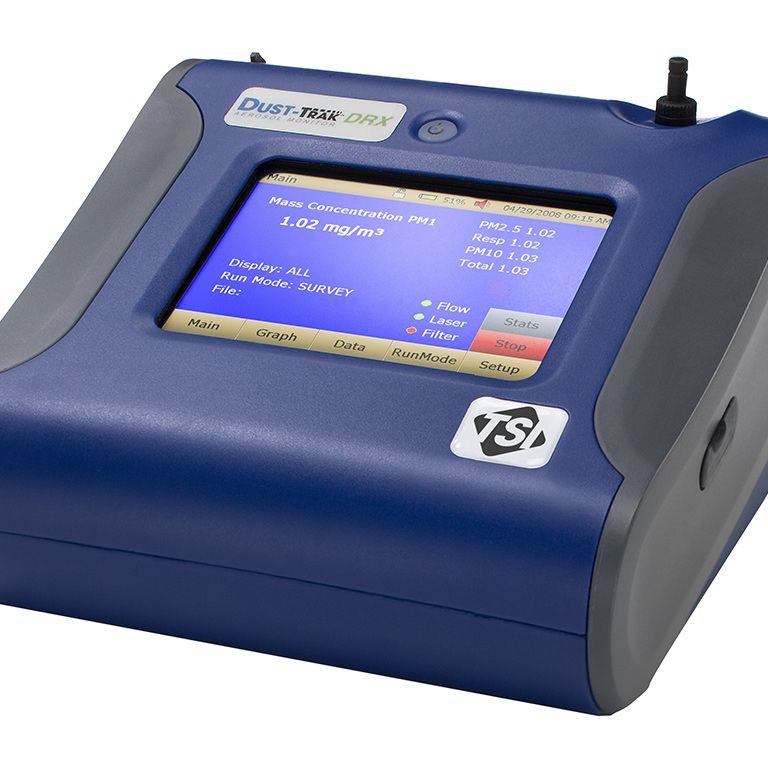

TSI DustTrak DRX 8533 / 8534 – multi-fraction aerosol monitors
Applications
Where the mass concentration of several size fractions is needed at once – occupational hygiene surveys, indoor air quality, outdoor environmental monitoring, point source location, ventilation and engineering control evaluations, emissions monitoring and research.
Key features
- Simultaneous PM1, PM2.5, respirable, PM10 and PM Total fractions
- Multi-channel laser photometer, concentration 0.001–150 mg/m³
- Sheath air system keeps the optics clean
- Manual and programmable data logging
- 8533: touchscreen, STEL alarm, gravimetric sampling, automatic zeroing (with optional module), environmental enclosure
- 2-year warranty
Models
| Parameter | DustTrak DRX 8533 | DustTrak DRX 8534 |
|---|---|---|
| Type | desktop, with battery and AC adapter | handheld, lightweight |
| Concentration range | 0.001–150 mg/m³ | 0.001–150 mg/m³ |
| Fractions | PM1, PM2.5, respirable, PM10, PM Total | PM1, PM2.5, respirable, PM10, PM Total |
| Gravimetric sample | yes (37-mm cassette) | – |
| Battery | Li-Ion 9220 mAh | Li-Ion 4400 mAh |
Included
Carrying case, rechargeable battery, power supply, zero filter, USB cable, PM2.5 calibration impactor, sample tube, HEPA filters, calibration certificate, operation manual.
What we offer
- Selection of the instrument and configuration for your task
- Advice on accessories and software
- Calibration and service organised through the manufacturer
Technical data according to the manufacturer: tsi.com, tsi.com
