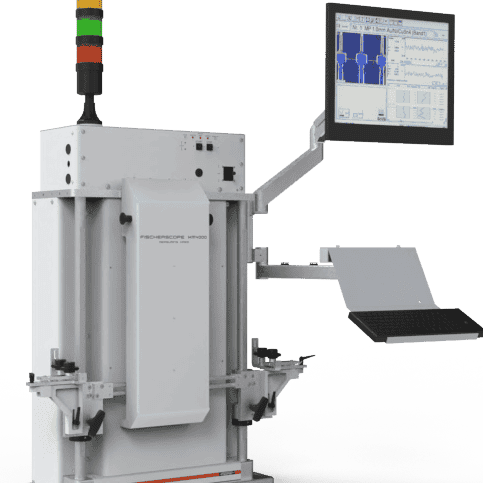

Helmut Fischer FISCHERSCOPE X-RAY 4000 – inline inspection of strips and stamped grids
Applications
For reel-to-reel electroplating companies, manufacturers of electrical contacts and lead frames, and for the production of fuel cell membranes (Pt and other precious metals) and functional layers of solar cells. The instrument works free-standing or is integrated into existing and new lines.
Key features
- The only instrument on the market for stamped grids
- Real-time measurement in shift operation, quick changeover between strips
- Automatable calibration and monitoring of measuring equipment
- Positioning axis and measuring head in one unit; horizontal or vertical mounting
- DPP+ – up to 50 % higher performance
- Remote control and data export via TCP/IP
Models
X-RAY 4100 (for stamped strips)
Technical data
- Strip width: up to 1 m
- X-ray tube: microfocus, tungsten anode (molybdenum optional)
- Detector: SDD 50 mm²
- Apertures: 2 or 4 interchangeable
- Filters: 6 interchangeable
- Interface: TCP/IP
- Software: WinFTM
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: helmut-fischer.com
