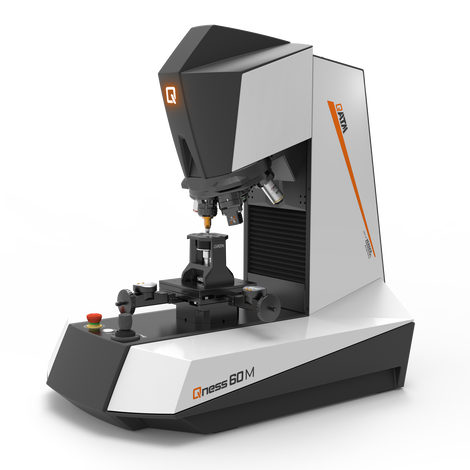

QATM Qness 10 / 60 M – semi-automatic microhardness tester
Applications
For laboratories that need precise micro/macrohardness testing of single parts and small series with manual specimen positioning but automatic Z axis, focusing and indentation evaluation. In addition – metallographic microscopy (phase analysis, grain size, layer thickness).
Key features
- Two load ranges: 10 M (20 gf – 10 kgf) or 60 M (0.25 gf – 62.5 kgf)
- Automatic Z axis with CAS protection, approach up to 30 mm/s
- 8-position motorised tool changer; Rockwell module as an option
- Digital XY cross table with position feedback
- Autofocus, brightness adjustment, indentation recognition and report generator
- “Ready to Test” package: ASTM + DAkkS certified Vickers diamond, 5x and 50x objectives
Models
Qness 10 M (20 gf – 10 kgf, 0.196 – 98.07 N); Qness 60 M (0.25 gf – 62.5 kgf, 0.00245 – 612.92 N)
Technical data
- Methods: Vickers, Knoop, Brinell; Rockwell – option
- Scales: HV 0.00025* – HV 60; HK 0.001 – HK 2; HBW 1/1 – HBW 5/62.5; HRA–HRF, HR15/30/45 N/T
- Table: Ø 100 mm; cross table 135 × 135 mm, X/Y travel 25 mm (option 50 mm); Z travel 150 mm (option 260 mm)
- Throat depth: 170 mm; max. specimen weight 50 kg; instrument weight 55 kg
- Objectives: XLED 2x, 2.5x, 5x, 10x, 20x, 50x, 100x; field of view from 0.074 × 0.055 mm (100x) to 2.80 × 2.10 mm (XLED 2); camera 5 Mpix CMOS USB 3.0
- Software: Qpix Control2 “M” with INSPECT; Qconnect export to PDF, XML, CSV, Excel, Q-DAS, OPC UA
- Power supply: 100–240 V, 45–65 Hz
Standards
DIN EN ISO 6506 / ASTM E-10; DIN EN ISO 6507 / ASTM E-92 / E-384; DIN EN ISO 4545; DIN EN ISO 6508 / ASTM E-18; DIN EN ISO 18265, ASTM E-140; INSPECT modules: DIN 9042 / ASTM E-562 / E-1245 (phases), DIN EN ISO 643 / ASTM E-112 (grain size), DIN EN ISO 1463 (layer thickness), DIN EN ISO 5817 (welds)
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com
