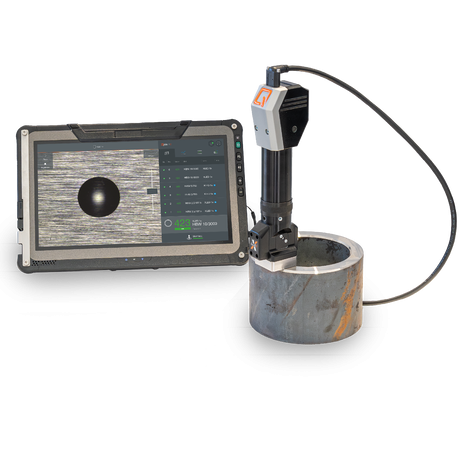

QATM Qmobile EVO – portable Brinell indentation evaluation device

Applications

For foundries, forges and inspection departments that make Brinell indentations with production presses or the hammer method and need to evaluate them on site in a standardised way – without a handheld microscope and subjective reading.

Key features

• Standardised Brinell evaluation according to DIN EN ISO 6506 and ASTM E-10 directly on the object
• Integrated microscope with XLED optics, 5 MP camera, 7.9 × 5.9 mm field of view
• Qpix T2 software on an industrial 11.6” tablet; option – external PC
• Interchangeable head for specific tasks; indirect calibration with a hardness reference plate
• Integrated conversion for the hammer (shear pin) method to HB 30, HRC and kg/mm² for steel and cast iron
• Supplied in a case, weight 0.7 kg

Models

Qmobile EVO

Technical data

• Evaluated scales: HBW 10/3000, HBW 5/750, HBW 2.5/187.5
• Field of view: 7.9 × 5.9 mm
• Camera: 5 Mpix
• Interface: 1 × USB 3.0
• Tablet display: 11.6”
• Weight: 0.7 kg

Standards

DIN EN ISO 6506, ASTM E-10

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: qatm.com
