CISAM-Ernst e-brio-w / Altair 20x – optical readers for Brinell indentations
Applications

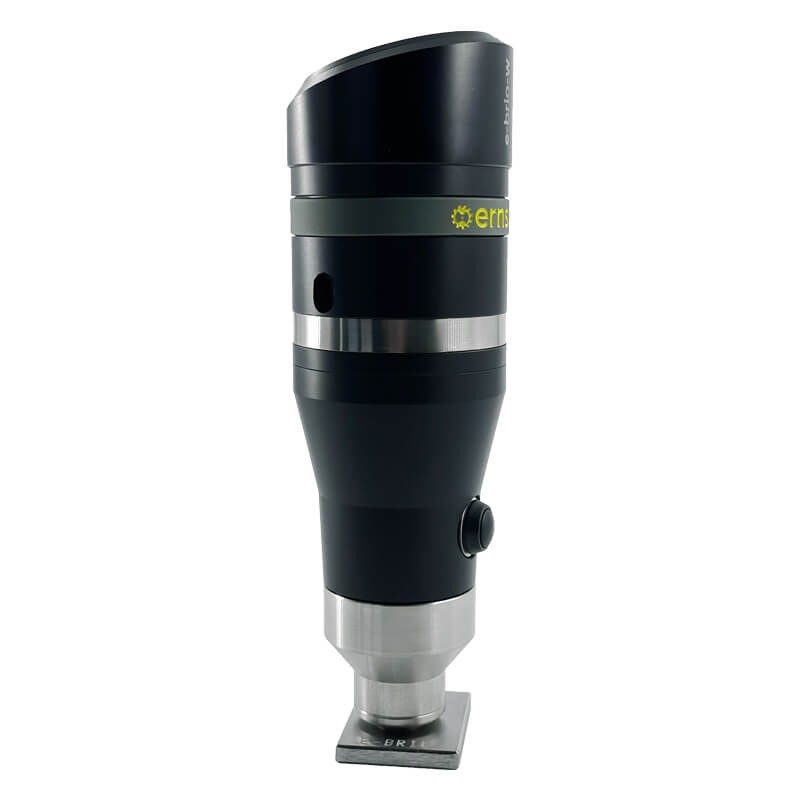

For reading Brinell indentation diameters and determining hardness. The e-brio-w is a stand-alone wireless instrument with a camera and edge detection algorithm that automatically measures indentations on various surfaces; optional Windows software provides data management, statistics and reports. The Altair 20x is a lightweight handheld microscope with integrated LED illumination and a 0–6 mm graduated scale, supplied with a Brinell indentation reading table.
Key features
- e-brio-w: automatic reading with an edge detection algorithm, shortens reading time
- e-brio-w: 1 µm optical resolution, camera 752 × 480 px, min. indentation Ø 0.7 mm
- e-brio-w: stand-alone with display, wireless; covers all HBW scales and Ernst shear pin scales
- Altair 20x: LED illumination, removable base ring, narrow base for confined spaces
- Altair 20x: supplied with case, calibration certificate and reading table; powered by AAA 1.5 V
- ACCREDIA certificate (ILAC MRA) on request for both instruments
Models
| Model | Methods / scales | Load | Note |
|---|---|---|---|
| e-brio-w | Brinell HBW: HB30 (10/3000, 5/750, 2.5/187.5), HB15 (10/1500), HB10, HB5, HB2.5, HB1.25, HB1 + Ernst pin scales | – | Wireless, 750 g, h 170 mm Ø 66 mm; Windows 10/11 software sold separately |
| Altair 20x | Reading of Brinell indentations using the table; scale 0–6 mm | – | 0.720 kg, Ø 66 mm, h 151 mm; resolution 0.05 mm |
Technical data
- e-brio-w: optical resolution 1 µm; camera resolution 752 × 480 px; min. measurable diameter 0.7 mm
- e-brio-w: support base Ø 30 mm; weight 750 g; h 170 mm, Ø 66 mm; wireless connection
- e-brio-w functions: indentation reading, histogram, statistics, report, manual indentation correction
- Altair 20x: graduated scale 0–6 mm, resolution 0.05 mm; Ø 66 mm, h 151 mm, 0.720 kg; AAA 1.5 V battery
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: cisam-ernst.com, cisam-ernst.com
