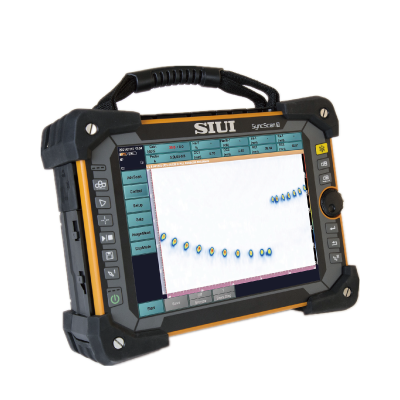

SIUI SyncScan 3 – PAUT flaw detector with TFM and 4-ch TOFD
Applications
Inspection of thick welds (≥100 mm; TOFD up to 300 mm) and complex composite materials in oil & gas, transportation, aerospace, shipbuilding and manufacturing.
Key features
- TFM 3D real-time imaging; up to 6 TFM modes at once
- TFM image resolution up to 1024 × 1024, raw FMC data recorded
- 64 PA channels – higher sensitivity and SNR
- 2.5× faster PAUT and 3× faster TOFD scanning
- CAD import for fast workpiece setup; PA 3D simulation
- Simultaneous TOFD + UT for full coverage without blind zones
Technical data
- Channels: 64:128PR PA, 4 TOFD
- TFM resolution: up to 1024 × 1024
- TFM modes: up to 6 simultaneously
- TOFD: welds up to 300 mm thick
What we offer
- Selection of the instrument, probes and calibration blocks for your task
- Advice on configuration and optional functions
- Service and calibration organised for you
Technical data according to the manufacturer: siui.com
