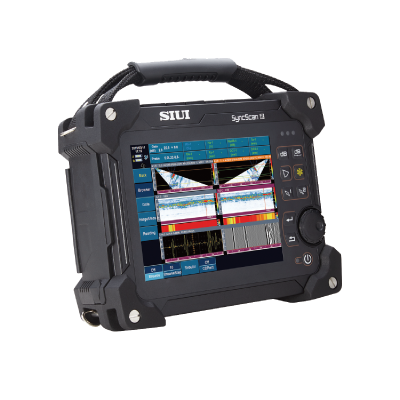

SIUI SyncScan 2 – phased array (PAUT) and TOFD flaw detector
Applications
UT, PA and TOFD inspection of welds, forgings and plates, pressure vessel welds (PA and TOFD simultaneously) and corrosion mapping with a dual linear array probe.
Key features
- 32 PA channels – suited to extra-thick walls and high-attenuation materials
- 1 or 2 TOFD channels activated by licence; TOFD for thickness up to 100 mm
- Scan speed approx. 3 m/min
- Pitch-catch (PR) mode, corrosion inspection with DLA probe
- Light: 4 kg with battery; removable fan for high temperatures
Technical data
- Channels: 32:128PR PA, 1–2 TOFD
- Weight: 4 kg with battery
- Scan speed: approx. 3 m/min
- Ports: encoder (biaxial), SD, 2 × USB, VGA, Ethernet
- Probe ports: 4 UT/TOFD, 1 PA
What we offer
- Selection of the instrument, probes and calibration blocks for your task
- Advice on configuration and optional functions
- Service and calibration organised for you
Technical data according to the manufacturer: siui.com
