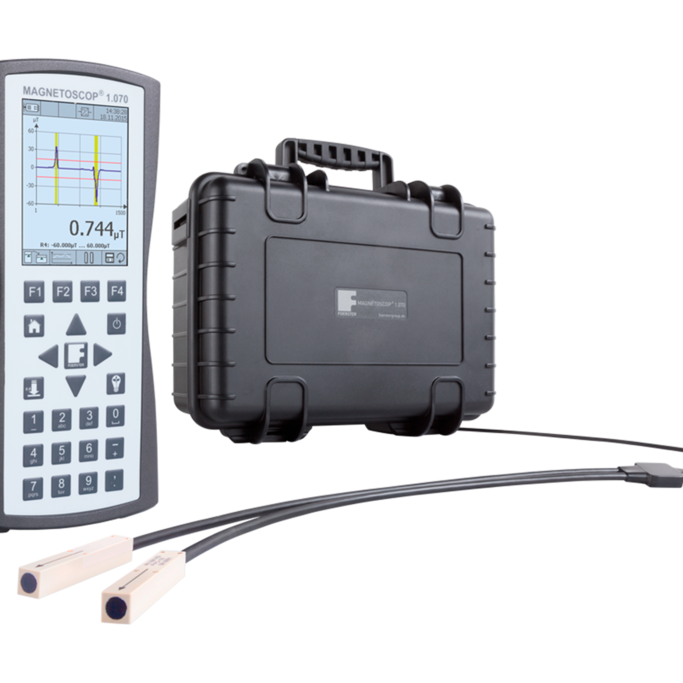

Foerster MAGNETOSCOP 1.070 – portable magnetometer and permeability meter
Applications
For mobile inspection and quality assurance where magnetic fields must be measured accurately: checking residual magnetism (remanence) of weakly magnetic materials and parts, determining the demagnetisation state of steel parts, detecting ferromagnetic inclusions in austenitic steels and non-ferrous alloys, and measuring the permeability of low-permeability and non-magnetic materials. Also suitable for long-term monitoring of the ambient magnetic field, e.g. before installing magnetically sensitive equipment (MRI), while comparative permeability measurements reveal material changes due to carburisation, corrosion or structural changes.
Key features
- Magnetic flux density – absolute value or gradient (fluxgate probes)
- Measurement of relative magnetic permeability µr
- Single and series measurements, peak values, limit values, visual and audible alarms
- Editable measuring procedures with graphical operator guidance, automatic probe recognition
- Data on SD card, USB, MAGDATA software for reports
- Powered by batteries, rechargeable battery or mains
Technical data
| Parameter | MAGNETOSCOP 1.070 |
|---|---|
| Measuring range | 0.1 nT–50 mT; µr 1.0–2.0 |
| Field measurement uncertainty | 1.5 % of measuring range |
| Permeability measurement uncertainty | 5 % of measured value |
| Resolution | 24-bit ADC |
| Display | 3.5″ |
| Dimensions / weight | 221 × 102 × 41 mm / 0.62 kg with batteries |
| Protection | IP54 |
| Operating temperature | 0…+40 °C |
| Batteries | 4 × AA (alkaline or NiMH) |
Standards
IEC 60404-15 (section 6), ASTM A342M (method 4), STANAG 2897 and AEODP-7, API Spec 7, VG 95578.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: foerstergroup.com
