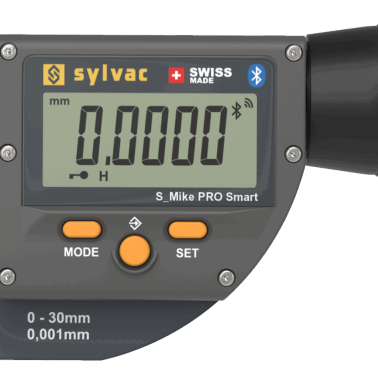

Sylvac S_Mike PRO – fast micrometers with non-rotating spindle
Applications
For series production and CNC shops where every part has to be measured quickly – the non-rotating spindle and fast travel shorten measuring time. Special anvils: disc (gears, modules >0.5), pointed 30° (grooves, splined shafts), flat/spherical (tubes, cylindrical surfaces).
Key features
- Non-rotating spindle, fast travel, selectable measuring force 5/10 N (on 0–30 mm models).
- Resolution 1 µm (Smart 803-0306 – 0.0001 mm).
- IP67 protection even when connected (IEC 60529).
- Versions with Bluetooth® (Smart) and cable (Proximity RS232/USB).
- Tungsten carbide anvils; SIS; setup via PC.
- Setting standard (50 mm / 75 mm) for larger ranges and calibration certificate included.
Models
| Model | Range | Resolution | Protection | Connectivity |
|---|---|---|---|---|
| 803-0300 (cylindr. Ø6.5) | 0–30 mm | 0.001 mm | IP67 | Proximity RS232/USB |
| 903-0600 (cylindr. Ø6.5) | 30–66 mm | 0.001 mm | IP67 | Proximity |
| 903-1000 (cylindr. Ø6.5) | 66–102 mm | 0.001 mm | IP67 | Proximity |
| 803-0306 (cylindr. Ø6.5 Smart) | 0–30 mm | 0.0001 mm | IP67 | Bluetooth® |
| 903-0606 (Smart) | 30–66 mm | 0.001 mm | IP67 | Bluetooth® |
| 903-1006 (Smart) | 66–102 mm | IP67 | Bluetooth® | |
| 803-0313 (disc Ø25) | 0–30 mm | 0.001 mm | IP67 | Bluetooth® |
| 903-0613 (disc) | 30–66 mm | 0.001 mm | IP67 | Bluetooth® |
| 903-1013 (disc) | 66–102 mm | 0.001 mm | IP67 | Bluetooth® |
| 803-0314 (flat Ø6.5 / spherical Ø7) | 0–30 mm | 0.001 mm | IP67 | Bluetooth®, Proximity |
| 803-0310 (pointed 30° / spherical R0.3) | 0–25 mm | 0.001 mm | IP67 | Bluetooth® |
Technical data
- Maximum permissible error MPE (DIN 863 / ISO 3611): cylindr. 3/4/5 µm (Smart 2.5/4/5 µm); disc 4/5/6 µm (full contact), 10/11/12 µm (partial); flat/spherical 3 µm; pointed 3 µm.
- Repeatability: 1 µm (±1 digit); Smart 0–30 mm – 0.8 µm.
- Disc: parallelism 5/6/6 µm, flatness 2 µm, measurable module >0.5.
- Dimensions A/B/C: 37.3/27.5/68 (0–30); 73.3/43/74 (30–66); 109.3/60/74 mm (66–102).
- Power supply: lithium CR2032.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: sylvac.ch, sylvac.ch
