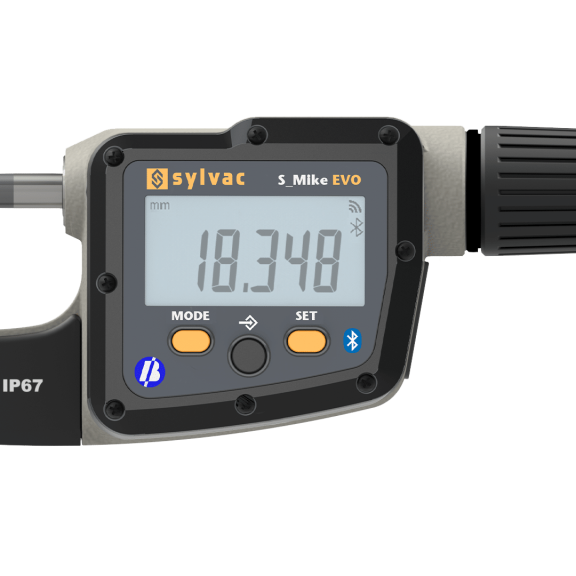

Sylvac S_Mike EVO – micrometer with rotating spindle
Applications
A classic micrometer for the shop floor and quality control for those used to a rotating spindle and needing Bluetooth® data transfer. Four sizes cover 0–100 mm.
Key features
- Resolution 1 µm, XXL display.
- IP67 protection even when connected; integrated Bluetooth®.
- Ø6.5 mm tungsten carbide measuring faces; measuring force 7–10 N.
- Pitch 1 mm/revolution; preset function; SIS.
- Calibration certificate included.
Models
| Model | Range | Resolution | Protection | Connectivity |
|---|---|---|---|---|
| 803-6025 | 0–25 mm | 0.001 mm | IP67 | Bluetooth® |
| 803-6050 | 25–50 mm | 0.001 mm | IP67 | Bluetooth® |
| 803-6075 | 50–75 mm | 0.001 mm | IP67 | Bluetooth® |
| 803-6100 | 75–100 mm | 0.001 mm | IP67 | Bluetooth® |
Technical data
- Maximum permissible error MPE: 2 µm (0–50 mm), 3 µm (50–100 mm).
- Repeatability: 1 µm (up to 75 mm), 2 µm (75–100 mm).
- Dimensions L/B/C/D: 35.5/7.5/25/3 (0–25); 61/11/37/3; 86/12/50/3; 112/13/63/3 mm.
- Power supply: lithium CR2032 (included).
- Supplied with: instrument, battery, instructions, calibration certificate.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: sylvac.ch, sylvac.ch
