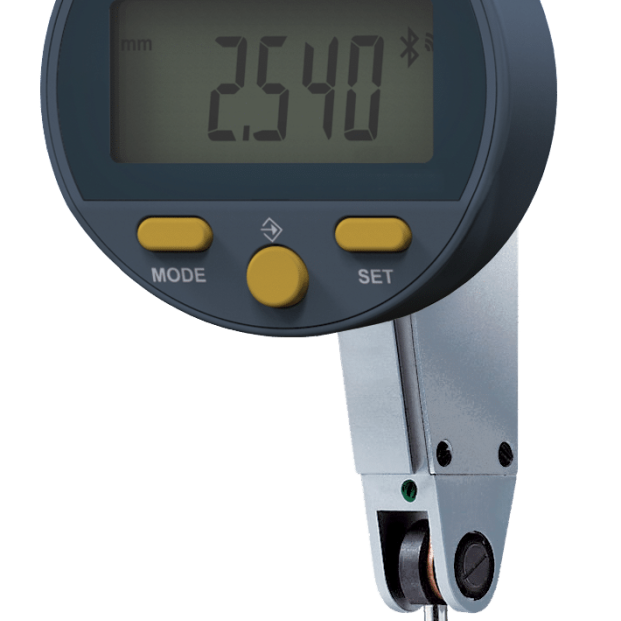

Sylvac S_Dial TEST Smart – digital lever test indicator
Applications
For centring parts on machine tools, checking runout and parallelism, and for hard-to-reach surfaces. Digital and analogue readings at the same time; Bluetooth® transfers the result to a PC.
Key features
- Two displays – digital and analogue.
- Resolution 0.001 mm, repeatability 1 µm.
- Integrated Bluetooth®, wired Power RS232/USB outputs.
- Very low measuring force: 0.15 N (0.8 mm) / 0.06 N (2.0 mm).
- Weight only 70 g; 805-4323 is supplied with both styli.
Models
| Model | Range | Resolution | Protection | Connectivity |
|---|---|---|---|---|
| 805-4321 (stylus 12.5 mm) | 0.8 mm | 0.001 mm | IP54 | Bluetooth® + wired |
| 805-4322 (stylus 36.5 mm) | 2.0 mm | 0.001 mm | IP54 | Bluetooth® + wired |
| 805-4323 (both styli) | 0.8 / 2.0 mm | 0.001 mm | IP54 | Bluetooth® + wired |
Technical data
- Error fe (α=0°): 3 µm (0.8 mm), 8 µm (2.0 mm); total fges: 4 / 10 µm.
- Hysteresis fu: 2 / 3 µm; repeatability fw: 1 µm.
- Protection IP54 (IEC 60529).
- Power supply: lithium CR2032.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: sylvac.ch
