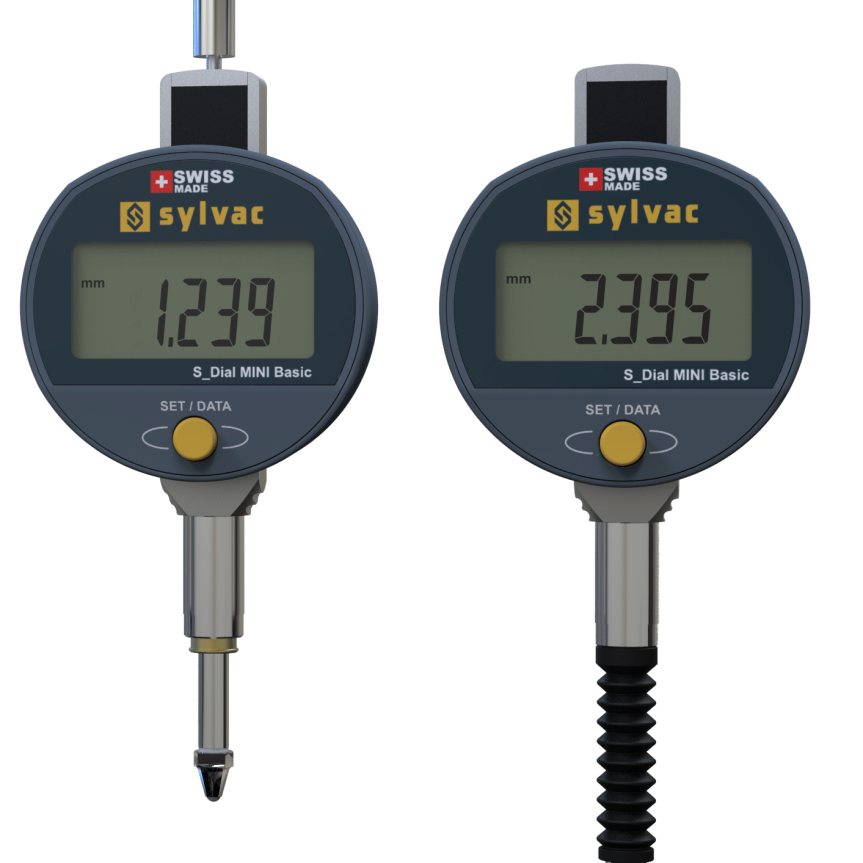

Sylvac S_Dial MINI – compact Ø45 mm indicators
Applications
For measuring fixtures, multi-point benches and places where space is limited – compact Ø45 mm non-rotating housing. Basic – cabled output; Smart – integrated Bluetooth®.
Key features
- The smallest digital indicator on the market (Ø45 mm).
- Resolution 0.01 or 0.001 mm; repeatability 2 µm.
- S (standard, IP54, with lifting cap) and P (protected, IP67, with bellows) versions.
- Mounting stem Ø8 h6, hardened and ground stainless steel.
- Smart: Bluetooth®; both versions – Power/RS232/USB output.
- 0.001 mm models with calibration certificate.
Models
| Model | Range | Resolution | Protection | Connectivity |
|---|---|---|---|---|
| 805-4121 (Basic S) | 12.5 mm | 0.01 mm | IP54 | RS232/USB (Power) |
| 805-4125 (Basic P) | 12.5 mm | 0.01 mm | IP67 | RS232/USB |
| 805-4521 (Basic S) | 12.5 mm | 0.001 mm | IP54 | RS232/USB |
| 805-4525 (Basic P) | 12.5 mm | 0.001 mm | IP67 | RS232/USB |
| 805-6121 (Smart S, lifting cap) | 12.5 mm | 0.01 mm | IP54 | Bluetooth® + cabled |
| 805-6123 (Smart S) | 12.5 mm | 0.01 mm | IP54 | Bluetooth® + cabled |
| 805-6125 (Smart P) | 12.5 mm | 0.01 mm | IP67 | Bluetooth® + cabled |
| 805-6521 (Smart S, lifting cap) | 12.5 mm | 0.001 mm | IP54 | Bluetooth® + cabled |
| 805-6523 (Smart S) | 12.5 mm | 0.001 mm | IP54 | Bluetooth® + cabled |
| 805-6525 (Smart P) | 12.5 mm | 0.001 mm | IP67 | Bluetooth® + cabled |
Technical data
- Maximum permissible error fe: 10 µm (0.01 mm versions, ±1 digit), 4 µm (0.001 mm versions).
- Repeatability: 2 µm.
- Measuring force: S 0.5–0.9 N; P 0.6–1.3 N (±20 %).
- Power supply: lithium CR2032.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: sylvac.ch, sylvac.ch
