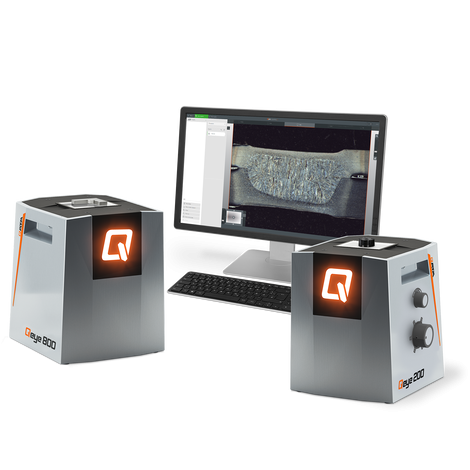

QATM Qpix Control2 / Qeye 200 / 800 – software and optical analysis for macro sections
Applications
For welding production and quality laboratories (steel structures, equipment manufacturing – Qeye 800) and for laser welding and electronics research (Qeye 200): image capture of macro sections, weld geometry measurement and report generation at a single workstation with the hardness tester.
Key features
- IAI (Intelligent Area Illumination) – four separately switchable LED profiles that reduce reflections from the section.
- 4K UHD USB 3.0 camera; five preset magnification steps (zoom wheel).
- Measuring tools: lengths, angles, circles, polygons (area/perimeter), fillet weld measurement; settings according to user standards.
- Print-ready template inspection reports; support for barcode/QR/DMC code readers; Qconnect interface (XML, serial, QDAS Plug-In+).
- Qpix Control2 combines hardness testing and optical analysis in a single interface (Live imaging, 3D Smartview); QAI – AI-based image evaluation.
- Touch control panel suitable for use with gloves.
Models
| Model | Field of view | Magnification | Camera |
|---|---|---|---|
| Qeye 200 | 23.7×17.8 mm – 3.7×2.8 mm | 0.63×–4× | 4K UHD, 12 MP |
| Qeye 800 | 80×60 mm – 16×12 mm | 1×–5× | 4K UHD, 8.5 MP |
| Qpix Control2 | PC-based software for hardness testers and Qeye | – | – |
| Qpix T2 | software for instruments with a touch screen | – | – |
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: qatm.com, qatm.com
