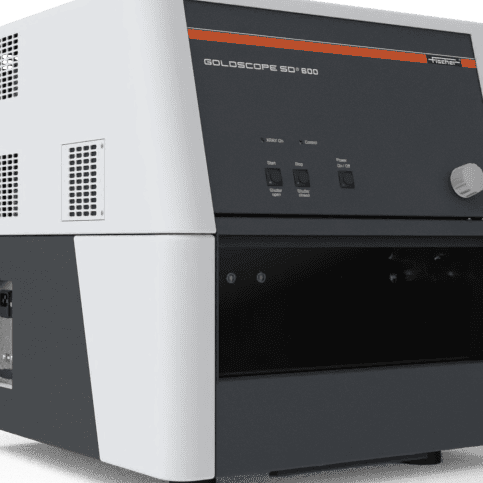

Helmut Fischer GOLDSCOPE SD 600 – the most powerful gold analyzer for larger items

Applications

For pawnshops, gold traders, assay laboratories and jewellery manufacturers who need higher accuracy and the ability to measure larger items. The manufacturer describes this model as its most powerful XRF analyzer for gold authenticity testing and precious metal analysis.

Key features

• SDD detector (20 mm²) and DPP+ – up to 50 % better performance compared with DPP
• Manually adjustable scissor stage and laser pointer for quick positioning
• Measuring distance set by the patented DCM method
• 4 interchangeable collimators and 3 interchangeable filters
• Predefined “Gold Setup” measuring applications in the WinFTM software

Models

one model

Technical data

• X-ray tube: microfocus, tungsten anode
• Detector: silicon drift detector, 20 mm² effective area, Peltier cooling
• Measuring spot: approx. Ø 0.25 mm
• Collimators / filters: 4 interchangeable / 3 interchangeable
• Max. sample height: up to 140 mm
• Signal processing: DPP+
• Software: WinFTM

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: helmut-fischer.com
