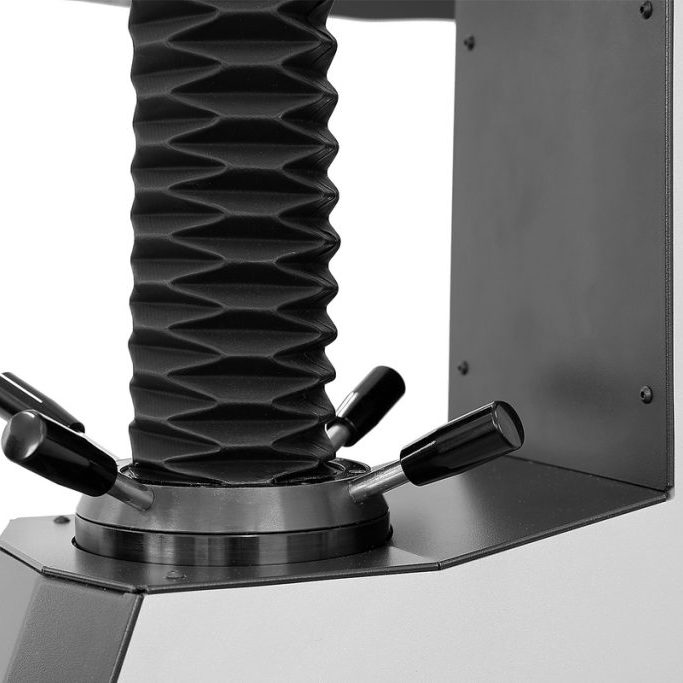

QATM Qness 150 CS (ECO) – compact Rockwell hardness tester

Applications

For production workshops and quality stations that need fast, standard Rockwell testing (HRA–HRV, superficial Rockwell) with a compact, robust instrument and minimal training. Additionally – hardness of plastics according to ISO 2039.

Key features

• Direct depth measuring system (0.05 µm resolution) in the indenter axis – no frame deflection errors
• Controlled electronic closed-loop loading 1–250 kg
• Welded steel frame, compact C-shaped design
• Removable clamping sleeve for hard-to-reach test points
• 7″ capacitive touch screen, Qpix TE with green/red tolerance indication and a list of 999 results
• Integrated LED work area lighting

Models

Qness 150 CS (manual spindle); Qness 150 CSA+ (automatic); option – pedestal

Technical data

• Test force: 1–250 kg (9.81–2452 N)
• Methods: Rockwell HRA–HRV, HR15/30/45 N/T/W/X/Y; HBT and HVT (not according to standards); plastics 49.03 / 132.9 / 357.9 / 961 N
• Test height / throat depth: 250 mm / 157 mm
• Table: Ø 100 mm; max. specimen weight 100 kg; instrument weight 77 kg
• Display: 7″ capacitive touch screen; Qpix TE software; 1 × USB
• Power supply: 100–240 V, 45–65 Hz; power ~60 W

Standards

DIN EN ISO 6508, ASTM E-18 (Rockwell); DIN EN ISO 2039 (plastics); conversions DIN EN ISO 18265, DIN EN ISO 50150, ASTM E140

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: qatm.com, qatm.com
