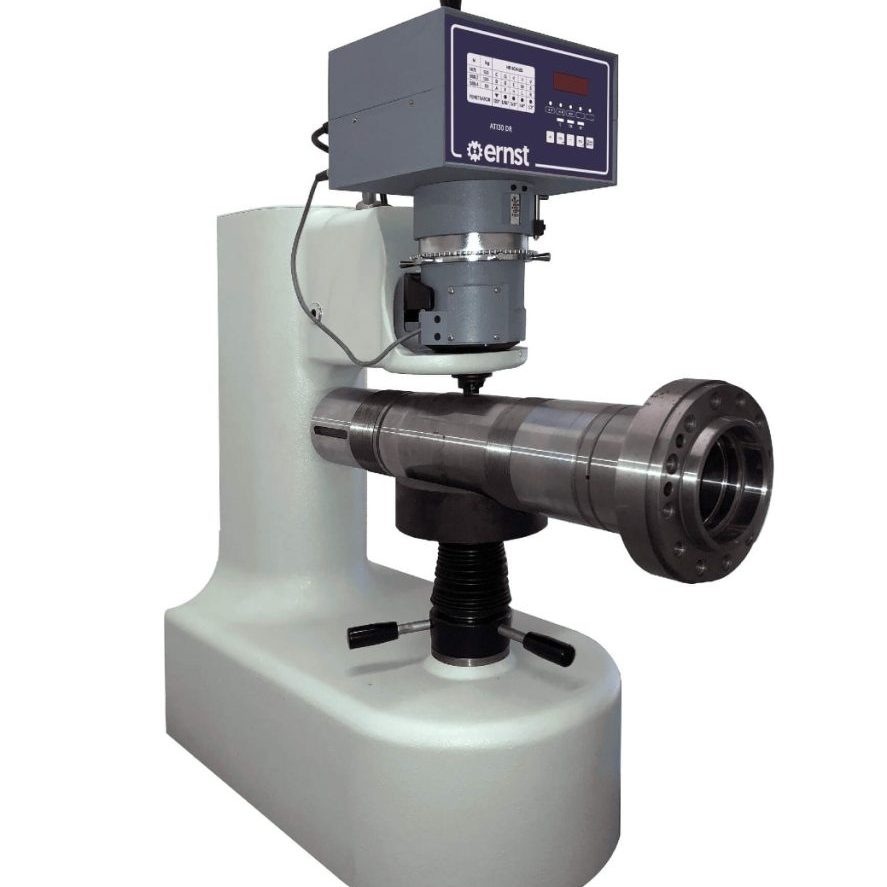

CISAM-Ernst AT130 / AT250 – bench-top Rockwell hardness testers
Applications
For Rockwell, Super Rockwell and Brinell hardness testing in production and in the laboratory. The spring-loaded load system eliminates the influence of material deformation (bending) and provides a 2 s test cycle with a single lever movement. AT130 – basic model with digital display and RS232; AT250 – with colour touchscreen, memory for 400 files and extended interfaces.
Key features
- Patented Ernst spring load system – insensitive to sinking-in and bending
- 2 s test cycle, one lever movement per test
- Manual load application with automatic preload
- Resistant to dust and vibration (for production conditions)
- 4 stand configurations (NX, TX, CAR, MUR); MOD DR and MOD DSR versions
- AT250: memory for 400 files × 2,500 results, USB printer / USB export
Models
| Model | Methods / scales | Load | Note |
|---|---|---|---|
| AT130 MOD DR | Rockwell HRA, HRB, HRC, HRD, HRF, HRG; Brinell HB30 | 60, 100, 150 kgf; Brinell 62.5, 125, 187.5 kgf; preload 10 kgf | Min. Ø 6 mm; RS232 |
| AT130 MOD DSR | Super Rockwell HR15N, HR30N, HR45N, HR15T, HR30T, HR45T; Brinell 62.5 kgf | 15, 30, 45 kgf; preload 3 kgf | Min. Ø 4 mm; semi-automatic version available (4 s) |
| AT250 MOD DR | Rockwell HRA, HRB, HRC, HRD, HRF, HRG; Brinell HB10, HB30 | 60, 62.5, 100, 125, 150, 187.5 kgf; preload 10 kgf | Touchscreen 800 × 480 px |
| AT250 MOD DSR | Super Rockwell HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | 10, 15, 15.6, 30, 31.2, 45 kgf; preload 3 kgf | Min. Ø 4 mm |
Technical data
- TX stand: max. height 240 mm (400 mm without elevating screw), depth 225 mm; NX stand: height 210 mm, depth 240 mm
- Weight: NX 95 kg; TX 125 kg; CAR 165 kg; MUR 115 kg (both series)
- Dimensions: NX 30 × 60 × h73 cm; TX 30 × 60 × h95 cm; CAR 95 × 33 × h133 cm; MUR 30 × 70 × h110 cm
- AT130 interface: RS232; power supply 115 / 230 VAC; warranty 12 months
- AT250 interfaces: USB (printer, export); optional RS232, RS485, Profibus, Ethernet MODBUS-TCP, Bluetooth; power supply 100–240 VAC
- Languages: Italian, English, German (others on request)
Standards
ASTM E-18; ISO 6508 (the manufacturer also states compliance with UNI, ISO, DIN, ASTM).
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your samples in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: cisam-ernst.com, cisam-ernst.com
