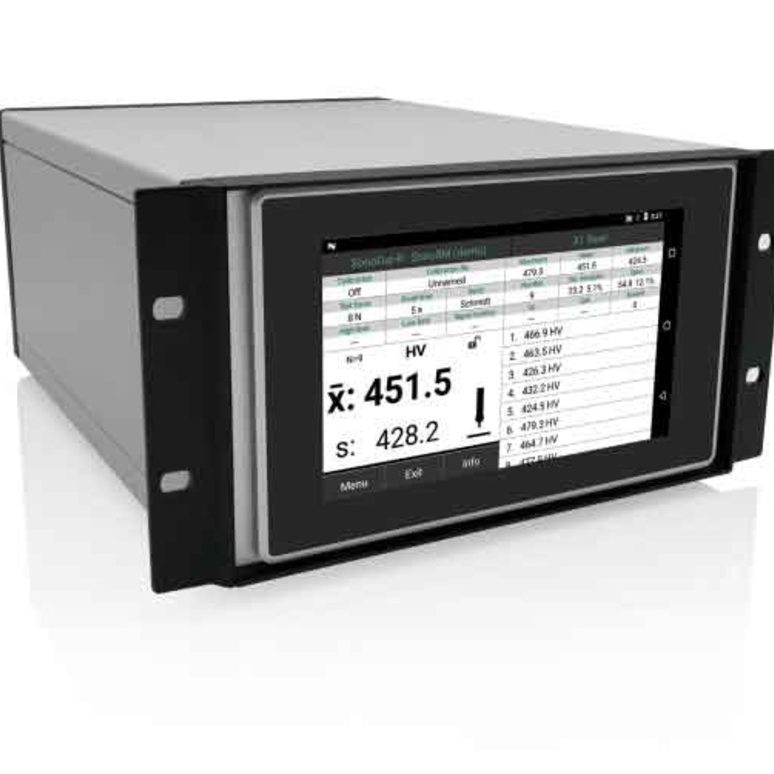

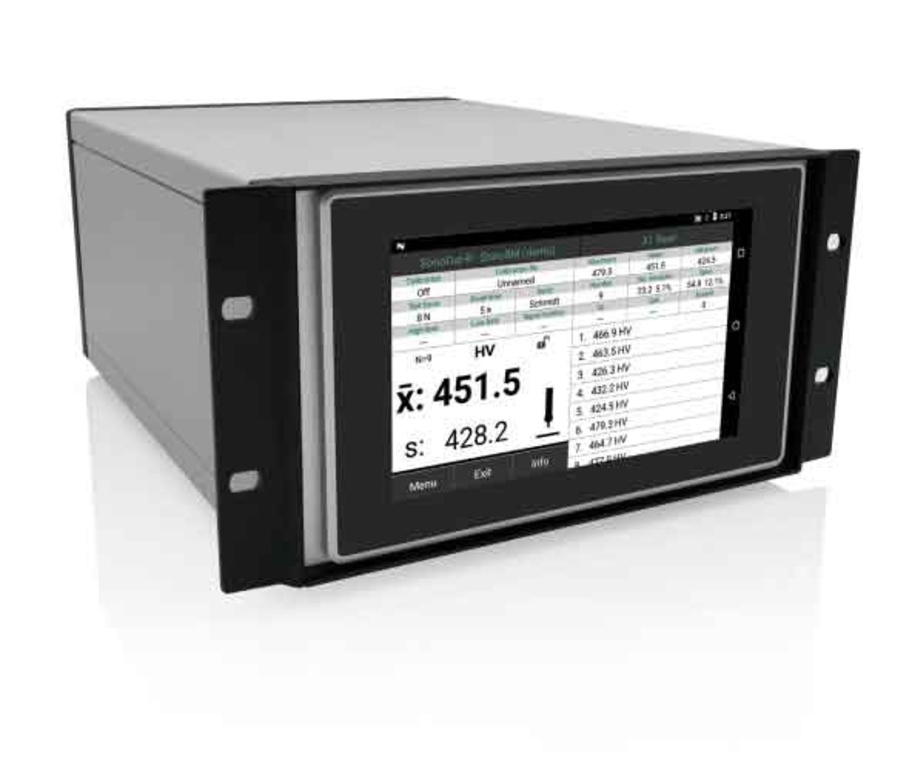

Foerster SONODUR R – automatable UCI hardness tester for production lines
Applications
For 100 % process control in mass and series production: hardness measurement of series parts after heat and/or surface treatment, as well as coating hardness on gravure cylinders. With its 19″ housing, SONODUR R is suitable for integration into automated production lines and for use as a benchtop instrument. It runs the same Android software as SONODUR 3, adapted for a 7″ touch screen. Thanks to USB and a galvanically isolated digital I/O interface, according to the manufacturer it is currently the world’s only fully automatable UCI hardness testing system: set limits can directly control, for example, actuators for sorting good / reject parts.
Key features
- Fully automatable UCI measurement for 100 % process control
- Operator-independent, repeatable measurements
- Integration into automatic lines or benchtop operation
- Intuitive Android software
- Many standard interfaces for connection to third-party systems
- Wide choice of UCI probes: handheld probes 10, 30, 49 and 98 N, motorised – 1, 3 and 8.6 N
Technical data
| Parameter | SONODUR R |
|---|---|
| Test method | UCI according to DIN 50159-1,2:2021, ASTM A1038:2019 |
| Probes | cabled SONO H / M / S series |
| Operating system | Android 7 |
| Interfaces | digital I/O (galvanically isolated), RS232 (data and remote control), USB for updates |
| Power supply | 24 V DC, min. 1 A |
| Display | 7″ PCT touch TFT with LED backlight |
| Dimensions | approx. 133 × 236 × 314 mm (H × W × D), for 19″ housing |
| Weight | approx. 3400 g |
Standards
DIN 50159, ASTM A1038.
What we offer
- Selection of the instrument and configuration for your task, together with the manufacturer
- Trial measurements of your parts in the manufacturer’s laboratory
- Training, calibration and service organised through the manufacturer
Technical data according to the manufacturer: foerstergroup.com
