Karl Deutsch KD-CHECK – penetrants, removers and developers for penetrant testing

Applications

For detecting surface cracks, pores and lack of fusion in any non-porous material – steel, aluminium, titanium, ceramics, plastics. Red RDP penetrants for simple use in daylight; fluorescent FWP / FP-WB for series inspection of critical parts with higher sensitivity.

Key features

• Tested according to DIN EN ISO 3452-2 (and -6 for low temperatures), ASME V Art. 6 – low sulphur and halogen content
• Sensitivity levels from 0.5 to 3
• Water-based, biodegradable (EN ISO 9888) variants
• Packaging: 500 ml aerosol, 1 l, 5 l, 10 l, 25 l; drums and IBC on request

Models

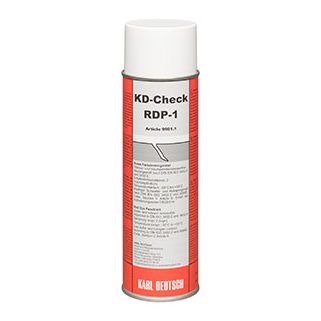

• Red penetrants: RDP-1 (oil-based, −30…+50 °C, level 2; 9901.1 aerosol / 9901.4 / 9901.5 / 9901.2 / 9901.25); RDP-2 (water-based, +10…+50 °C, level 2; 9930.1 / 9930.4 / 9930.5 / 9930.2 / 9930.25)
• Fluorescent: FWP-1 (oil-based, level 2; 9904.x); FWP-3 (water-based, level 0.5; 9914.x); FWP-4 (surfactant-based, level 1; 9915.x); FWP-6 (surfactant-based, level 2; 9917.x); FWP-33 (water-based, level 3; 9933.x); FP-WB-1 (water-based, level 1; 9940.1xx); FP-WB-2 (water-based, level 2; 9940.2xx)
• Removers: PR-1 hydrocarbon-based (9902.1/.5/.2/.25); PR-2 alcohol/ketone-based (9907.x); PREW-S acidic aqueous (9980.0xx); PREW-AS alkaline aqueous (9980.1xx)
• Developers: SD-1 solvent-based wet (9903.1 aerosol / 9903.5 / 9903.2); DD-1 dry (9908.1 1 kg / 9908.2 20 kg); WDD water-suspendable (9923.1/.2/.3/.6)

Technical data

• Temperature range: RDP-1 −30…+50 °C; RDP-2 +10…+50 °C
• Sensitivity levels according to ISO 3452-2: 0.5 (FWP-3), 1 (FWP-4, FP-WB-1), 2 (RDP-1, RDP-2, FWP-1, FWP-6, FP-WB-2), 3 (FWP-33)
• Developer forms: a (DD-1 dry), c (WDD), d/e (SD-1)

Standards

DIN EN ISO 3452-2; DIN EN ISO 3452-6 (RDP-1, SD-1); ASME Code V Art. 6; QPL-AMS 2644 (SD-1, DD-1, PR-1, PR-2); EN ISO 9888 (biodegradability)

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer
