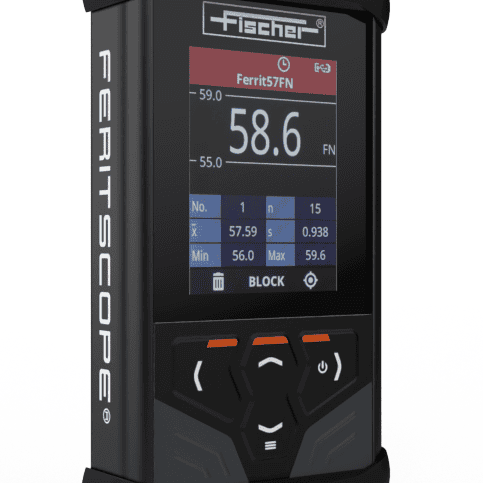

Helmut Fischer FERITSCOPE DMP30 – ferrite content gauge for austenitic steel

Applications

Handheld instrument for on-site measurement of delta ferrite content in austenitic and duplex steel and of deformation martensite – on clad surfaces, pressure vessels, boilers, pipelines and welds. It also detects welds on polished surfaces and creates a ferrite distribution profile along the weld.

Key features

• Range 0.1–80 % Fe or 0.1–110 FN
• All-aluminium IP64 housing, replaceable Li-Ion battery > 24 h
• Light, sound and vibration alarms based on tolerances
• Digital probe via USB-C or Bluetooth; F adapter for analogue probes
• 250,000 readings in 2,500 applications, FISIQ T reports and export
• Wide choice of ferrite calibration standards

Models

FERITSCOPE DMP30; module for the MMS PC2 system (PERMASCOPE)

Technical data

• Method: magnetic induction
• Range: 0.1–80 % Fe / 0.1–110 FN
• Memory: 250,000 readings / 2,500 applications
• Battery: replaceable Li-Ion, > 24 h
• Protection: IP64
• Interfaces: USB-C, Bluetooth

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: helmut-fischer.com
