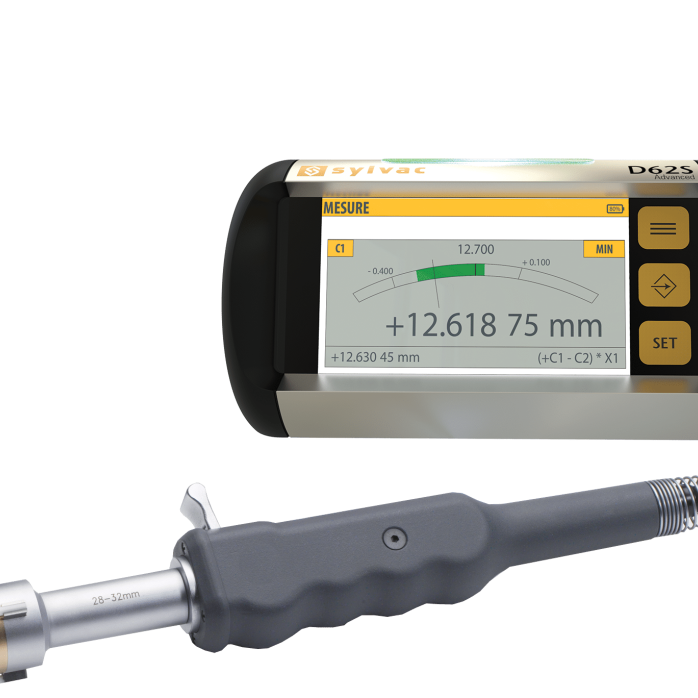

Sylvac Ultima – high-accuracy internal measuring sets

Applications

For measuring laboratories and precision manufacturing (hydraulics, pneumatics, injection nozzles, bearing seats) where 1–2 µm accuracy is needed for bores. Quick-change heads and an absolute digital probe in the handle – one set covers a wide range.

Key features

• Range 2–310 mm, 43 heads (960-1206…960-1248) and 7 ready-made sets (961-13xx).
• Resolution up to 0.0001 mm.
• Maximum permissible error 1 µm (2–60 mm), 1.5 µm (60–200 mm), 2 µm (210–310 mm).
• Compatible with all Sylvac displays (D62S, D400S, etc.).
• Handles (961-3001…3004) and extensions (961-2001…2007) for deep measurements.

Models

Technical data

• Measuring range steps: 2–2.5; 2.5–3; 3–4; 4–5; 5–6; 6–8; 8–10; 10–12; 12–14; 14–17; 17–20; 20–24; 24–28; 28–32; 32–38; 38–44; 44–50; 50–60; in 10 mm steps up to 310 mm.
• Absolute digital probe in the handle; quick-change heads.
• Connectivity: RS232 1:1, Mini-USB to USB, RS-USB adapter; integration with Sylvac displays.

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: sylvac.ch
