Helmut Fischer calibration standards – traceable standards for tactile and XRF instruments

Applications

Only a regularly calibrated instrument gives correct results. Fischer offers over 500 standards – foil and solid, individually and in sets – with a factory or DAkkS certificate. DAkkS-certified standards come with proof of traceability and are recognised by certification bodies, e.g. according to IATF 16949.

Key features

  • More than 500 standards for coating thickness, ferrite, conductivity, XRF and COULOSCOPE
  • Factory or DAkkS certificate as required
  • Fischer’s DAkkS laboratory in Germany is accredited according to DIN EN ISO/IEC 17025
  • Internationally recognised certificate and traceability to base units
  • Custom standards made from the customer’s material (XRF)

Models

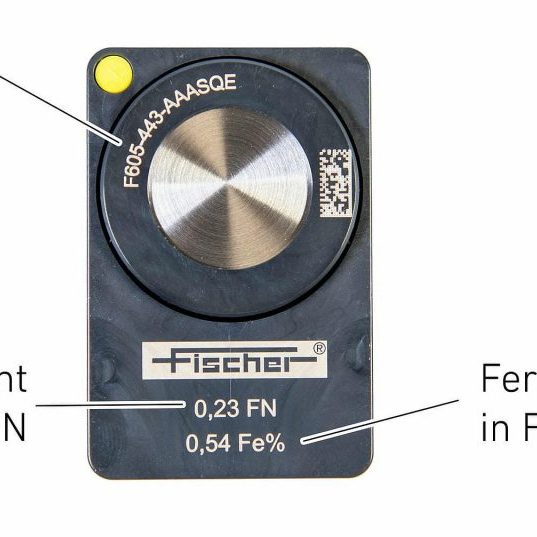

tactile – foil, ferrite, conductivity, Cu/ISO (also with holes); COULOSCOPE – various materials and thicknesses (e.g. NiCu); XRF – solid and foil, single/double/triple-layer, alloy

Technical data

  • Number: > 500
  • Certificates: factory / DAkkS
  • Accreditation: DIN EN ISO/IEC 17025 (mass per unit area)

Standards

DIN EN ISO/IEC 17025; IATF 16949 (recognition)

What we offer

  • Selection of the instrument and configuration for your task, together with the manufacturer
  • Trial measurements of your samples in the manufacturer’s laboratory
  • Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: helmut-fischer.com
