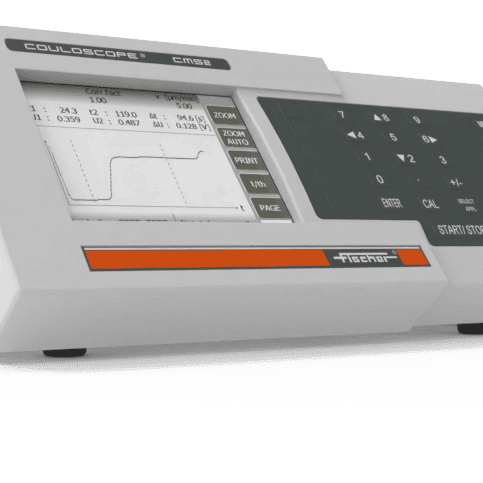

Helmut Fischer COULOSCOPE CMS2 / CMS2 STEP – coulometric metallic coating thickness gauge

Applications

A benchtop instrument for measuring the thickness of almost all single-layer and multilayer metallic coatings on metallic and non-metallic substrates by anodic stripping – an accurate and less expensive alternative to X-ray fluorescence when coatings are too thick for XRF. The CMS2 STEP additionally measures electrochemical potentials in multilayer nickel to assess corrosion behaviour.

Key features

• Almost 100 predefined measuring applications (e.g. Zn on Fe, Ni on brass)
• Colour display with graphical guidance and voltage curve display
• Adjustable stripping rate 0.1–50 µm/min
• STEP test: layer thickness and potential differences in one measurement (CMS2 STEP)
• Stands and measuring cells for different samples, wide range of accessories
• Memory for 3,000 readings in 50 applications, USB

Models

COULOSCOPE CMS2; COULOSCOPE CMS2 STEP (potential measurement, adjustable stripping current, automatic conditioning of the silver electrode)

Technical data

• Method: coulometry (anodic stripping)
• Range: 0.02–50 µm (depending on the combination and rate)
• Stripping rate: 0.1–50 µm/min
• Stripping area: Ø 0.6–3.2 mm
• Applications: ~100 predefined
• Memory: 3,000 readings / 50 applications
• Interface: USB

Standards

DIN EN ISO 2177; ASTM B764-04 and DIN EN 16866 (STEP)

What we offer

• Selection of the instrument and configuration for your task, together with the manufacturer
• Trial measurements of your samples in the manufacturer’s laboratory
• Training, calibration and service organised through the manufacturer

Request a quote

Technical data according to the manufacturer: helmut-fischer.com
